Sathish Shivram
AutoCAD Designer · 2D House Plans · Chennai
Architectural 2D house plans
Professional 2D House Plans for Chennai Homes
Get a 2D house plan tailored to your plot size, room requirements, and family needs. Discuss your requirements directly with the designer.
- Custom layout based on your requirements
- Room dimensions included
- PDF and image files
Sample plans below are for reference; your drawing will be prepared for your own plot.
Examples
House Plan Designs
Previous reference plans to help explain the layout you prefer.

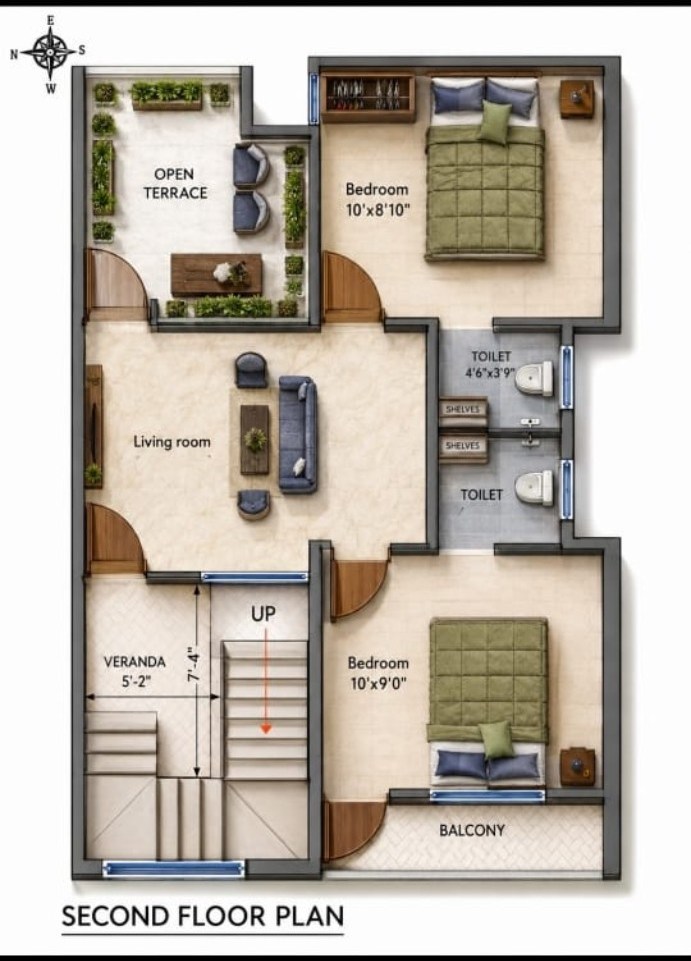

Second floor plan
Bedrooms, living area, terrace and balcony reference.
Enquire about a similar plan →
Ground floor with rooms
Example layout with hall, kitchen, bedroom and parking.
Enquire about a similar plan →The sample drawings are for illustration only and may belong to other projects. Publish them only if you have permission. They are not construction-ready documents.
Professional process
From Plot Details to Your 2D Plan
1
Share requirements
Send plot length and width, road-facing side, number of floors and required rooms on WhatsApp.
2
Confirm the scope
Agree on the drawing, dimensions, delivery format, timeline and any extra requirements before work starts.
3
Review your plan
Receive the agreed files and review the completed drawing.
About House Plan Chennai
House Plan Chennai focuses on 2D house plan work and direct communication, so you can explain what your family needs and clarify the layout before confirming the order.

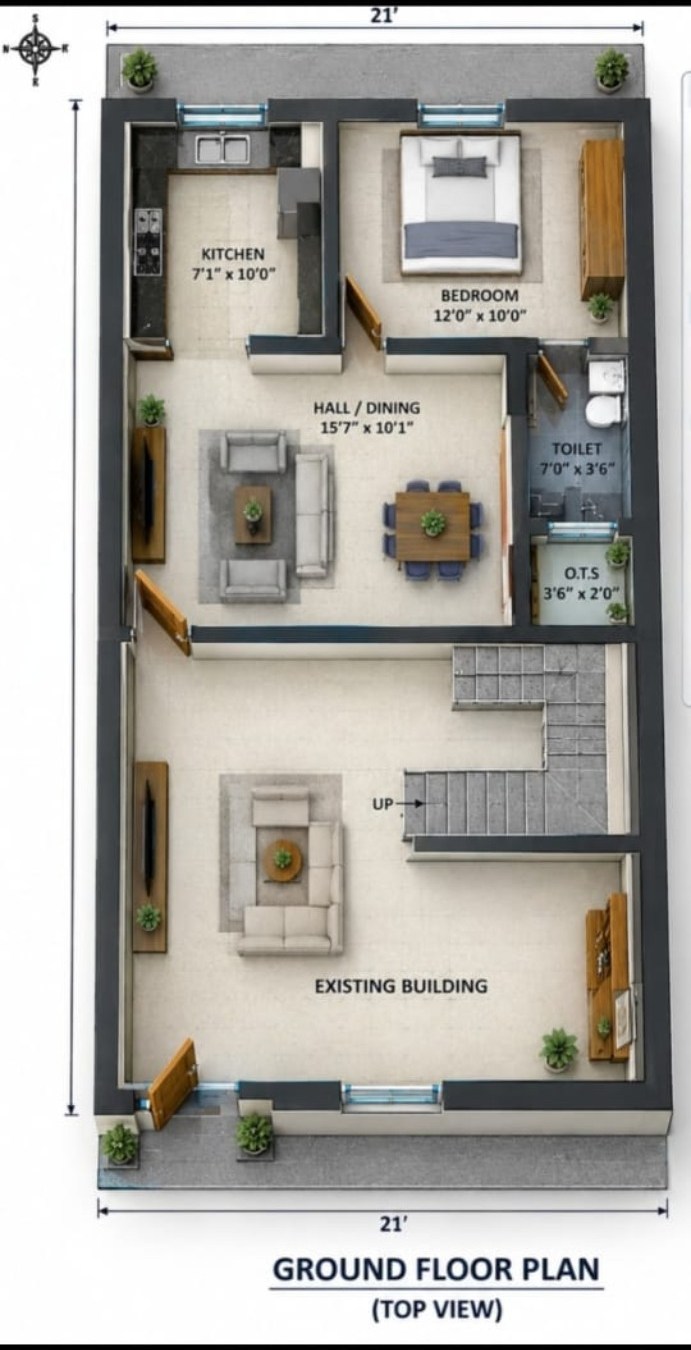

Additional reference plan. Use only with permission from the owner.
Contact
Have a Plot? Let's Plan It.
Send your plot size and room requirements to start.
House Plan Chennai · Villivakkam, Chennai
87B/77, N Red Hills Road, Netaji Nagar, Villivakkam, Chennai, Tamil Nadu 600049
